VP-308SH-TB
-Loading Capacity: 35kg
-Finish :Galvanized
-Length: 250-550mm
-Full Extension
-3D Adiustment:
-Up-down:0-3mm,Left-right:±1.5mm,front-back:±2mm
Classification:
Synchronized Full Extension Soft Close Undermount Slide
Download:
Product Details
Description
-Loading Capacity: 35kg
-Finish :Galvanized
-Length: 250-550mm
-Full Extension
-3D Adiustment:
-Up-down:0-3mm,Left-right:±1.5mm,front-back:±2mm

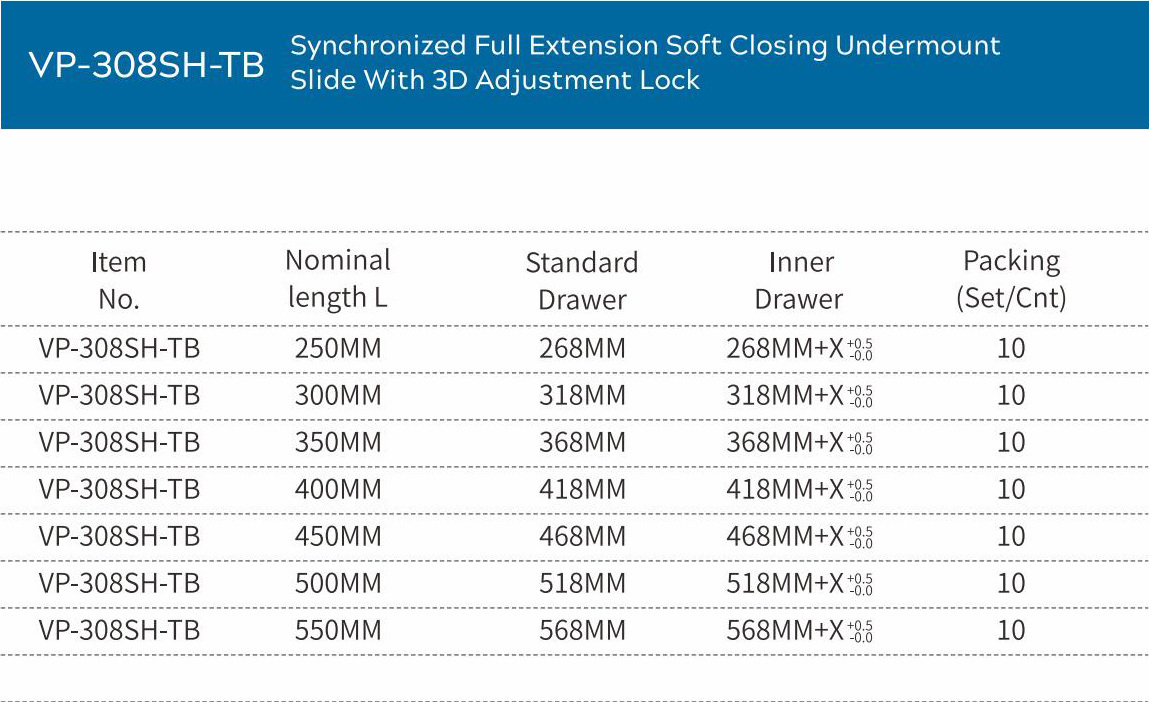

Product information
Slide (Left/Right)
| NominalLength NL | 16mmBoard Part# | 18mmBoard Part# | Set/ctn |
| 250mm | VP-308SH-TB-250 | VP-308SH8-TB-250 | 10 |
| 300mm | VP-308SH-TB-300 | VP-308SH8-TB-300 | 10 |
| 350mm | VP-308SH-TB-350 | VP-308SH8-TB-350 | 10 |
| 400mm | VP-308SH-TB-400 | VP-308SH8-TB-400 | 10 |
| 450mm | VP-308SH-TB-450 | VP-308SH8-TB-450 | 10 |
| 500mm | VP-308SH-TB-500 | VP-308SH8-TB-500 | 10 |
| 550mm | VP-308SH-TB-550 | VP-308SH8-TB-550 | 10 |
| 600mm | VP-308SH-TB-600 | VP-308SH8-TB-600 | 10 |
| Remark | 16mm Board The Max.thickness Of Drawer Side Board ls 16mm 18mm Board:the Max.thickness Of Drawer Side Board ls 19mm |
||
No.2 Locking Bracket(Left/Right)
Color: Optional
No.3 3D Adjustment LockingBracket (Left/Right)
Color: Red(-) With(+) Black
No.6 3D Adjustment LockingBracket (Left/Right)
Color:Grey+ Blue

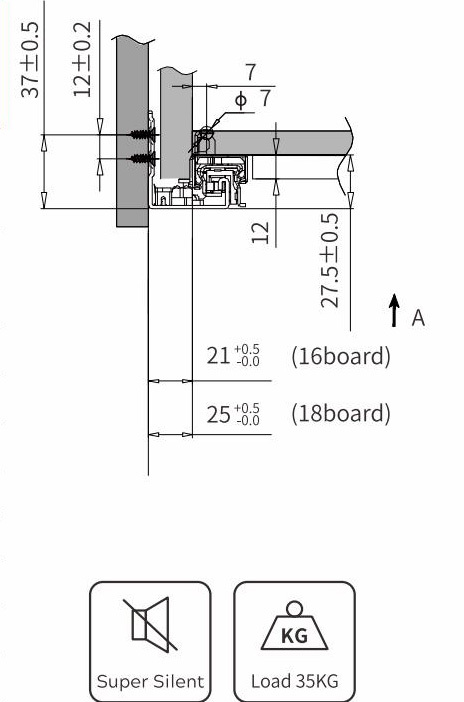

Space Requirement
NL=Nominal Length
Vapar attaches the biggest importance to quality controlWe introduced world-class production equipments andadvanced automatic machines including die-casting,forging, stamping, polishing, painting, etc. At the same time,Vapar has established an industry-leading laboratory toensure that every part of the products undergoes rigorousinspection. Through the strict quality management, Vaparproducts have been highly praised by the partners and winhigh market recognition.
Vapar has many experienced technicalengineers, excellentmanagement and sales team.Now the products of Vaparare exported to more than 20 countries in the world.
